3.1. SUEWS Quick Start Tutorial

Essential SUEWS workflow using the modern SuPy (Python) interface.

This tutorial demonstrates the complete workflow for running urban climate simulations with SUEWS:

1. Load sample data

2. Run simulation

3. Explore results (statistics, plotting, resampling)

What is SUEWS?

SUEWS (Surface Urban Energy and Water Balance Scheme) is an urban climate model that simulates energy and water fluxes in urban environments. SuPy is the modern Python interface that provides powerful data analysis capabilities and seamless integration with the scientific Python ecosystem.

import matplotlib.pyplot as plt
import pandas as pd

from supy import SUEWSSimulation

3.1.1. Load Sample Data

SuPy includes built-in sample data to get you started immediately. Load sample data for the simulation using the modern OOP API.

sim = SUEWSSimulation.from_sample_data()

print("Sample data loaded successfully!")
print(f"Grid ID: {sim.state_init.index[0]}")
print(f"Forcing period: {sim.forcing.time_range}")
print(f"Time steps: {len(sim.forcing)}")

Sample data loaded successfully!
Grid ID: 1
Forcing period: (Timestamp('2012-01-01 00:05:00'), Timestamp('2013-01-01 00:00:00'))
Time steps: 105408

3.1.2. Understanding Input Data

SUEWS requires two main input datasets:

• state_init: Initial conditions and site configuration

• forcing: Meteorological forcing data (time series)

Access these through the simulation object’s properties.

# Surface characteristics: building and tree heights
print("Building and tree heights:")
print(sim.state_init.loc[:, ["bldgh", "evetreeh", "dectreeh"]])

# Surface fractions by land cover type
print("\nSurface fractions:")
print(sim.state_init.filter(like="sfr_surf"))

Building and tree heights:
var     bldgh evetreeh dectreeh
ind_dim     0        0        0
grid
1        22.0     13.1     13.1

Surface fractions:
var     sfr_surf
ind_dim     (0,)  (1,) (2,)  (3,)  (4,) (5,)  (6,)
grid
1           0.43  0.38  0.0  0.02  0.03  0.0  0.14

3.1.3. Visualise Forcing Data

The forcing data drives the simulation. Access forcing variables directly as attributes of sim.forcing.

# Access forcing variables through the OOP interface
print("\nForcing data summary:")
print(f"  Air temperature range: {sim.forcing.Tair.min():.1f} to {sim.forcing.Tair.max():.1f} C")
print(f"  Wind speed range: {sim.forcing.U.min():.1f} to {sim.forcing.U.max():.1f} m/s")
print(f"  Total rainfall: {sim.forcing.rain.sum():.1f} mm")

# Slice forcing data by time (returns new SUEWSForcing object).
# Drop the first row with `.iloc[1:]` because accumulated variables
# (e.g. rainfall) for the partial period at the slice boundary are
# incomplete, making that row invalid as forcing input.
forcing_sliced = sim.forcing["2012-01":"2012-03"].iloc[1:]

# Update simulation with the time-sliced forcing
sim.update_forcing(forcing_sliced)

# Plot key meteorological variables
list_var_forcing = ["kdown", "Tair", "RH", "pres", "U", "rain"]
dict_var_label = {
    "kdown": r"Incoming Solar Radiation ($\mathrm{W\ m^{-2}}$)",
    "Tair": r"Air Temperature ($^\circ$C)",
    "RH": "Relative Humidity (%)",
    "pres": "Air Pressure (hPa)",
    "rain": "Rainfall (mm)",
    "U": r"Wind Speed ($\mathrm{m\ s^{-1}}$)",
}

Forcing data summary:
  Air temperature range: -5.7 to 28.8 C
  Wind speed range: 0.2 to 11.2 m/s
  Total rainfall: 821.0 mm

Tip

When resampling forcing data, call resample() first, then select columns. SUEWSForcing.resample() applies the correct aggregation method for each variable type (rain=sum, radiation=mean, instantaneous=last). Selecting columns first bypasses this logic.

# Resample to hourly for cleaner plots
df_plot_forcing = forcing_sliced.resample("1h")[list_var_forcing]

fig, axes = plt.subplots(6, 1, figsize=(10, 12), sharex=True)
for ax, var in zip(axes, list_var_forcing):
    df_plot_forcing[var].plot(ax=ax, legend=False)
    ax.set_ylabel(dict_var_label[var])
fig.tight_layout()

3.1.4. Modify Input Parameters

Modify surface parameters using the update_config method. This is the recommended approach for parameter changes.

# View original surface fractions
print("Original surface fractions:")
print(sim.state_init.loc[:, "sfr_surf"])

# Modify surface fractions using update_config
sim.update_config({"initial_states": {"sfr_surf": [0.1, 0.1, 0.2, 0.3, 0.25, 0.05, 0]}})

print("\nModified surface fractions:")
print(sim.state_init.loc[:, "sfr_surf"])

Original surface fractions:
ind_dim  (0,)  (1,)  (2,)  (3,)  (4,)  (5,)  (6,)
grid
1        0.43  0.38   0.0  0.02  0.03   0.0  0.14

Modified surface fractions:
ind_dim  (0,)  (1,)  (2,)  (3,)  (4,)  (5,)  (6,)
grid
1        0.43  0.38   0.0  0.02  0.03   0.0  0.14

3.1.5. Run Simulation

With forcing data and initial conditions ready, run the SUEWS simulation. The run() method returns a SUEWSOutput object for convenient access.

output = sim.run()

print(f"Simulation complete: {len(output.times)} timesteps")
print(f"Output groups: {output.groups}")
print(f"Grids: {output.grids}")

Simulation complete: 26206 timesteps
Output groups: ['SUEWS', 'snow', 'BEERS', 'ESTM', 'EHC', 'DailyState', 'RSL', 'debug', 'SPARTACUS', 'STEBBS', 'NHood']
Grids: [1]

3.1.6. Explore Results: Statistics

Access output variables directly as attributes of the output object. Use pandas’ built-in methods for quick statistical summaries.

# Access energy balance variables via SUEWS output group
df_suews = output.SUEWS

print("Energy balance statistics:")
print(f"  Net radiation (QN): mean = {df_suews['QN'].mean():.1f} W/m2")
print(f"  Sensible heat (QH): mean = {df_suews['QH'].mean():.1f} W/m2")
print(f"  Latent heat (QE): mean = {df_suews['QE'].mean():.1f} W/m2")
print(f"  Storage heat (QS): mean = {df_suews['QS'].mean():.1f} W/m2")

# Detailed statistics
df_suews.loc[:, ["QN", "QS", "QH", "QE", "QF"]].describe()

Energy balance statistics:
  Net radiation (QN): mean = 10.8 W/m2
  Sensible heat (QH): mean = 70.2 W/m2
  Latent heat (QE): mean = 16.1 W/m2
  Storage heat (QS): mean = 16.2 W/m2

var	QN	QS	QH	QE	QF
count	26206.000000	26206.000000	26206.000000	26206.000000	26206.000000
mean	10.812637	16.161517	70.192227	16.051334	91.592441
std	108.168546	73.468075	54.617085	13.599827	35.105111
min	-84.461392	-83.898495	-42.317077	2.126317	32.926395
25%	-48.146256	-21.914420	25.558264	7.764825	58.287789
50%	-36.461484	-13.508588	56.312100	12.411331	95.228474
75%	20.067901	23.287271	105.394943	19.379513	122.676977
max	510.523848	369.587104	287.046489	139.304467	161.325481

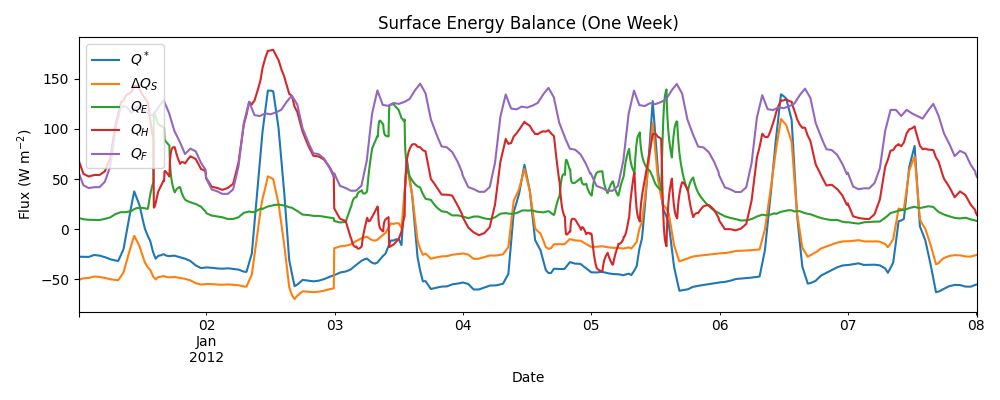

3.1.7. Explore Results: Weekly Energy Balance

Plot the surface energy balance for one week to see diurnal patterns.

dict_var_disp = {
    "QN": r"$Q^*$",
    "QS": r"$\Delta Q_S$",
    "QE": "$Q_E$",
    "QH": "$Q_H$",
    "QF": "$Q_F$",
}

# Get grid ID for indexing
grid = output.grids[0]

# Select first week of available data for plotting
start_date = output.times[0]
end_date = start_date + pd.Timedelta(days=7)

fig, ax = plt.subplots(figsize=(10, 4))
(
    df_suews.loc[grid]
    .loc[start_date:end_date, ["QN", "QS", "QE", "QH", "QF"]]
    .rename(columns=dict_var_disp)
    .plot(ax=ax)
)
ax.set_xlabel("Date")
ax.set_ylabel(r"Flux ($\mathrm{W\ m^{-2}}$)")
ax.set_title("Surface Energy Balance (One Week)")
ax.legend()
plt.tight_layout()

3.1.8. Temporal Resampling: Daily Patterns

SUEWS runs at 5-minute intervals. Resampling to daily values reveals seasonal patterns.

rsmp_1d = df_suews.loc[grid].resample("1d")
df_1d_mean = rsmp_1d.mean()
df_1d_sum = rsmp_1d.sum()

# Plot daily mean energy balance
fig, ax = plt.subplots(figsize=(10, 4))
(
    df_1d_mean.loc[:, ["QN", "QS", "QE", "QH", "QF"]]
    .rename(columns=dict_var_disp)
    .plot(ax=ax)
)
ax.set_xlabel("Date")
ax.set_ylabel(r"Mean Flux ($\mathrm{W\ m^{-2}}$)")
ax.set_title("Daily Mean Surface Energy Balance")
ax.legend()
plt.tight_layout()

/home/runner/work/SUEWS/SUEWS/docs/source/tutorials/tutorial_01_quick_start.py:202: Pandas4Warning: 'd' is deprecated and will be removed in a future version, please use 'D' instead.
  rsmp_1d = df_suews.loc[grid].resample("1d")

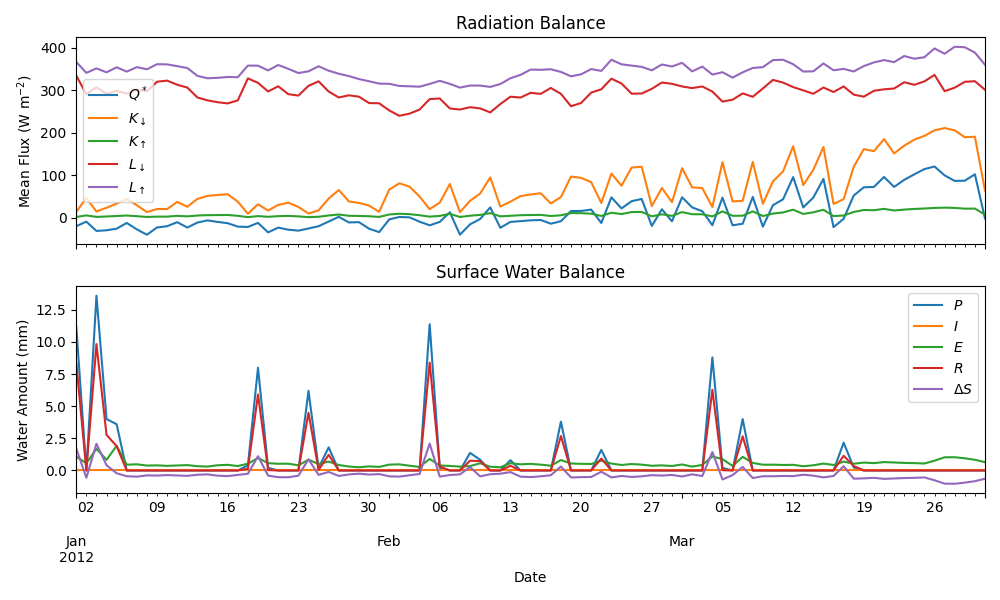

3.1.9. Radiation and Water Balance

Examine radiation components and water balance using daily aggregates.

dict_var_disp_full = {
    "QN": r"$Q^*$",
    "Kdown": r"$K_{\downarrow}$",
    "Kup": r"$K_{\uparrow}$",
    "Ldown": r"$L_{\downarrow}$",
    "Lup": r"$L_{\uparrow}$",
    "Rain": "$P$",
    "Irr": "$I$",
    "Evap": "$E$",
    "RO": "$R$",
    "TotCh": r"$\Delta S$",
}

fig, axes = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

# Radiation balance
(
    df_1d_mean.loc[:, ["QN", "Kdown", "Kup", "Ldown", "Lup"]]
    .rename(columns=dict_var_disp_full)
    .plot(ax=axes[0])
)
axes[0].set_ylabel(r"Mean Flux ($\mathrm{W\ m^{-2}}$)")
axes[0].set_title("Radiation Balance")
axes[0].legend()

# Water balance
(
    df_1d_sum.loc[:, ["Rain", "Irr", "Evap", "RO", "TotCh"]]
    .rename(columns=dict_var_disp_full)
    .plot(ax=axes[1])
)
axes[1].set_xlabel("Date")
axes[1].set_ylabel("Water Amount (mm)")
axes[1].set_title("Surface Water Balance")
axes[1].legend()

plt.tight_layout()

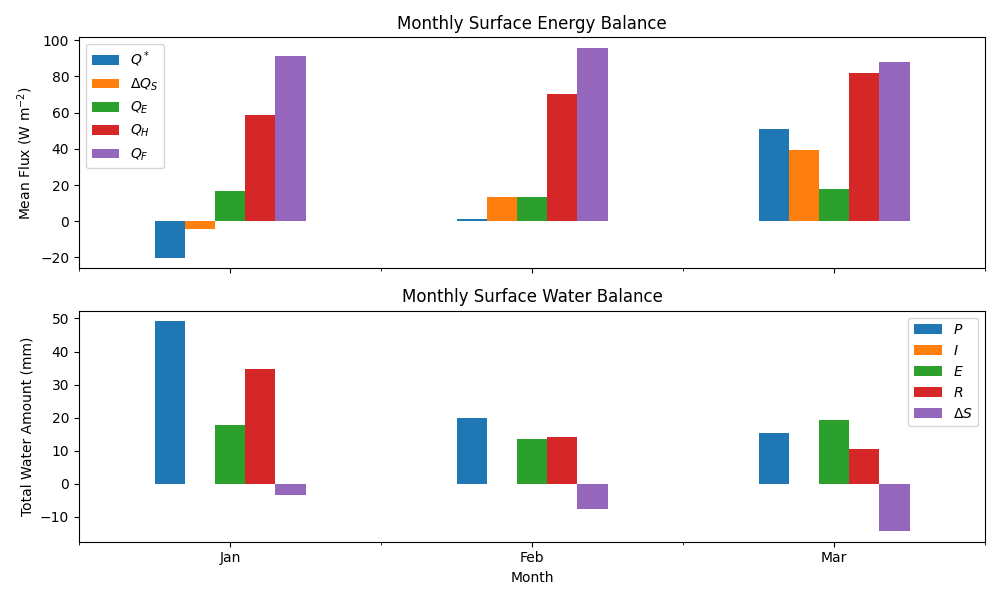

3.1.10. Monthly Patterns

Aggregate to monthly values for seasonal overview using bar charts.

df_plot = df_suews.loc[grid].copy()
df_plot.index = df_plot.index.set_names("Month")
rsmp_1M = df_plot.shift(-1).dropna(how="all").resample("1ME")
df_1M_mean = rsmp_1M.mean()
df_1M_sum = rsmp_1M.sum()
# Convert index to period for better month display
df_1M_mean.index = df_1M_mean.index.to_period("M")
df_1M_sum.index = df_1M_sum.index.to_period("M")

# Month names for labels
name_mon = [x.strftime("%b") for x in rsmp_1M.groups]

fig, axes = plt.subplots(2, 1, sharex=True, figsize=(10, 6))

# Monthly energy balance
(
    df_1M_mean.loc[:, ["QN", "QS", "QE", "QH", "QF"]]
    .rename(columns=dict_var_disp)
    .plot(ax=axes[0], kind="bar")
)
axes[0].set_ylabel(r"Mean Flux ($\mathrm{W\ m^{-2}}$)")
axes[0].set_title("Monthly Surface Energy Balance")
axes[0].legend()

# Monthly water balance
(
    df_1M_sum.loc[:, ["Rain", "Irr", "Evap", "RO", "TotCh"]]
    .rename(columns=dict_var_disp_full)
    .plot(ax=axes[1], kind="bar")
)
axes[1].set_xlabel("Month")
axes[1].set_ylabel("Total Water Amount (mm)")
axes[1].set_title("Monthly Surface Water Balance")
axes[1].xaxis.set_ticklabels(name_mon, rotation=0)
axes[1].legend()

plt.tight_layout()

3.1.11. Summary

This tutorial demonstrated the essential SUEWS workflow:

1. Load sample data using from_sample_data()

2. Run simulation with run() which returns SUEWSOutput

3. Explore results using the OOP interface for intuitive variable access

Key concepts covered:

• Energy balance components: Q*, QH, QE, QS, QF

• Radiation balance: Kdown, Kup, Ldown, Lup

• Water balance: Rain, Evap, Runoff, Storage change

• Temporal resampling: 5-min to hourly, daily, monthly

Next steps:

• Set Up SUEWS for Your Own Site - Configure SUEWS for your own site

• tutorial_03_impact_studies - Sensitivity analysis and scenario modelling
